| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 400-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Unit/Units per Month |
| Name: | Core Barrel | Drilling Diameter: | 300-3500mm Or As Required |
|---|---|---|---|
| Color: | Black | Type: | Core Barrel |
| Machine Type: | Drilling Equipment | Application: | Foundation Piling |
| High Light: | drilling rock wireline core barrel,3500mm wireline core barrel,high efficiency cutting angles core barrels |
||

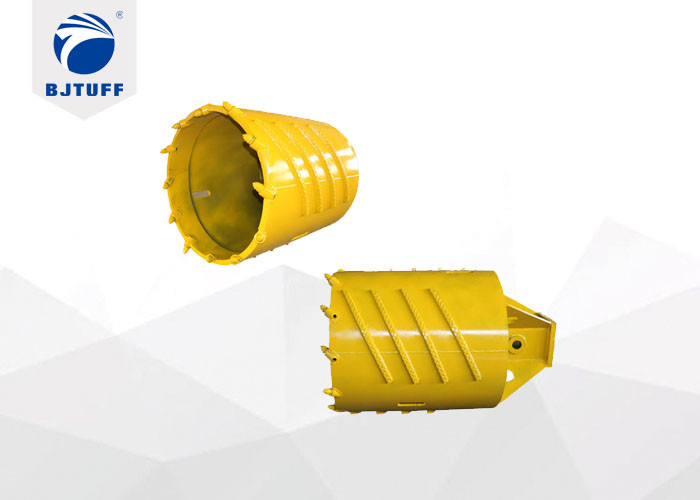

Drilling Core Rock Barrel With High Efficiency Cutting Angles
Application:
1.When rotating, the drill core of the core rock drill has several different cutting angles that are matched with each other, and it is repeatedly broken and knocked at the position of the ring groove in the hole.
2.Fractured rocks and hard rocks that the hardness is less than 80 MPa.
4.In higher compactness of soil or part of the soft rock strata,slippage due to selection of friction Kelly bar,can try to use core barrel.
Feature
1.Barrel adopts spiral wear resistant strips ,anti-attrition,prolong service life.
2.Heightening design,high construction efficiency ,efficiency reduce construction cost.
3.Adopts wear resistant block between teeth holders due to protect teeth holder and stiffening ring from serious wearing .
Model List:
| Cutting Dia. | Shell HIT. | Shell OD. | Shell THK. |
Stiffening Ring THK. |
Stiffening Ring HIT. |
Weight |
| φ600 | 1200 | 520 | 16 | 20 | 200 | 520 |
| φ800 | 1200 | 720 | 16 | 20 | 200 | 672 |
| φ900 | 1200 | 820 | 16 | 20 | 200 | 750 |
| φ1000 | 1200 | 920 | 16 | 20 | 200 | 847 |
| φ1200 | 1200 | 1120 | 16 | 20 | 200 | 1010 |
| φ1500 | 1200 | 1420 | 16 | 20 | 200 | 1370 |
| φ1600 | 1200 | 1520 | 16 | 20 | 200 | 1493 |
| φ1800 | 1000 | 1720 | 20 | 20 | 200 | 1841 |
| φ2000 | 800 | 1920 | 20 | 20 | 200 | 1852 |
| φ2200 | 800 | 2120 | 20 | 20 | 200 | 2329 |
| φ2500 | 800 | 2420 | 20 | 20 | 200 | 2705 |
| φ2800 | 800 | 2720 | 20 | 20 | 200 | 3200 |
| φ3000 | 800 | 2920 | 20 | 20 | 200 | 3800 |
| Remark : All measurements are in millimeters, weight in kilograms. | ||||||
Customizable Items:
1.Cutting DIA. Custom : design various cutting diameter based on demand.
2.Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
4.Kelly Box Custom: custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
Product advantage:
1-We purchase top quality raw materials from leading raw-steel factory.
2-Advanced welding and design ensure the products longer working life, which helps the client to reduce construction budget.
Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users. We boast a group of experienced foundation construction experts and consultants, who not only recommend the use of suitable products based on customer needs, but also give reasonable advice on the operation of construction equipment and construction methods.
FAQ:
Q1.What does your company produce?
The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.
Q2.Can you supply after-sales service?
Of course, Customers could contact our sales managers on line/by email/by phone if there are any question during installation or construction, solutions will be given within 12 hours.
