| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 400-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Unit/Units per Month |
| Material: | Q345B | Type: | Core Barrel |
|---|---|---|---|
| Color: | Or Any Colors You Want | Application: | Gravel,pebble ,highly Or Medium Weathered Rock |
| Name: | Drilling Machine Coring Barrel For Soilmec | Advantage: | High Performance Cost Ratio |
| High Light: | customizable rock drilling bucket,coring rock drilling bucket,great cutting angles core barrels |
||

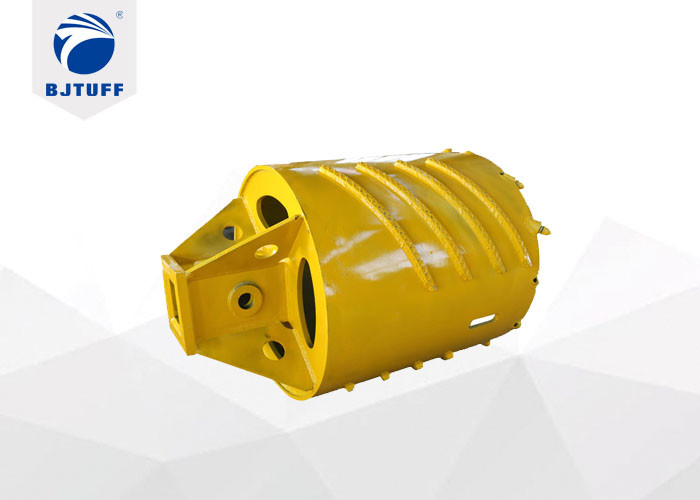

Customizable Items Core Rock Drilling Bucket With Great Cutting Angles
Application:
1.It is repeatedly broken and knocked at the position of the ring groove in the hole.
2.Relatively hard bedrock formations, large boulder layers and hard permafrost layers.
3.Apply to obvious layered medium weathered sandstone (high probability of coring) hard rock cutting.
4.In higher compactness of soil or part of the soft rock strata.
Feature
1.Cutting ring with rock drilling bits and releases the internal stress of rock;
2.Rock drilling bits perform stage breaking and drilling;
3.Small barrel facilitates the coring operation, large barrel performs stage breaking;
Model List:
| Cutting Dia. | Shell HIT. | Shell OD. | Shell THK. |
Stiffening Ring THK. |
Stiffening Ring HIT. |
| φ600 | 1200 | 520 | 16 | 20 | 200 |
| φ800 | 1200 | 720 | 16 | 20 | 200 |
| φ900 | 1200 | 820 | 16 | 20 | 200 |
| φ1000 | 1200 | 920 | 16 | 20 | 200 |
| φ1200 | 1200 | 1120 | 16 | 20 | 200 |
| φ1500 | 1200 | 1420 | 16 | 20 | 200 |
| φ1600 | 1200 | 1520 | 16 | 20 | 200 |
| φ1800 | 1000 | 1720 | 20 | 20 | 200 |
| φ2000 | 800 | 1920 | 20 | 20 | 200 |
| φ2200 | 800 | 2120 | 20 | 20 | 200 |
| φ2500 | 800 | 2420 | 20 | 20 | 200 |
| φ2800 | 800 | 2720 | 20 | 20 | 200 |
| φ3000 | 800 | 2920 | 20 | 20 | 200 |
| Remark : All measurements are in millimeters, weight in kilograms. | |||||
Customizable Items:
1.Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.
2.Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
3.Teeth No. Custom : encrypt the drilling teeth based on demand etc;
Product advantage:
1-We purchase top quality raw materials from leading raw-steel factory.
2-Our drilling tools can be customized depending on kinds of rigs and site conditions.
3-We require high quality of welding, therefore we employ at least 8 years experienced welders.
FAQ:
Q1.What does your company produce?
The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.
Q2.How do you promise the quality ?
We strictly control the process,so If the quality of the product itself has the problem of open welding, we will give compensation;
Q3.Can you supply after-sales service?
Of course, Customers could contact our sales managers if there are any question, solutions will be given within 12 hours.
