| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 400-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Unit/Units per Month |
| Name: | Core Barrel | Drilling Diameter: | 300-3500mm |
|---|---|---|---|
| Color: | Customized | Warranty: | 3 Months |
| Material: | Q345B,NM360/400 Or As Required | Advantage: | Save Much Time While Collect Core Sample |
| High Light: | strong compatibility core barrels,round shank core barrels,chisel core barrel drilling |
||

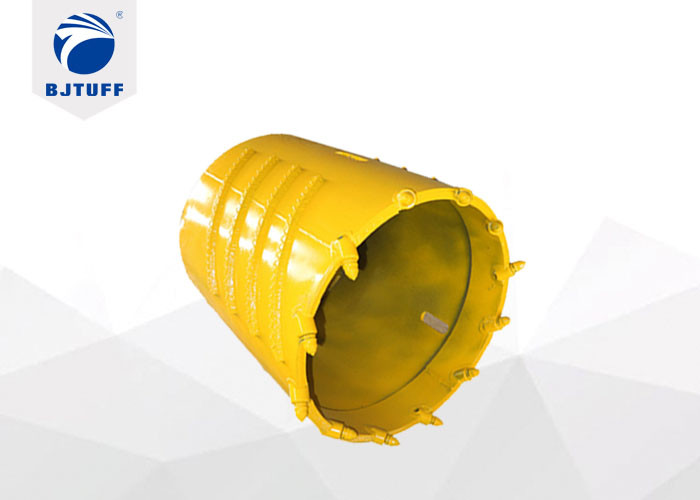

Strong Compatibility Round Shank Chisel Concrete Core Barrel
Application:
1.When rotating, the drill core of the core rock drill has several different cutting angles that are matched with each other, and it is repeatedly broken and knocked at the position of the ring groove in the hole.
2.Fractured rocks and hard rocks that the hardness is less than 80 MPa.
Feature
1.Cutting ring with rock drilling bits and releases the internal stress of rock;
2.Heightening design,high construction efficiency ,efficiency reduce construction cost.
3.Adopts wear resistant block between teeth holders due to protect teeth holder and stiffening ring from serious wearing .
Model List:
| Cutting Dia. | Shell HIT. | Shell OD. | Shell THK. |
Stiffening Ring THK. |
Stiffening Ring HIT. |
Teeth No. | Weight |
| φ600 | 1200 | 520 | 16 | 20 | 200 | 6 | 520 |
| φ800 | 1200 | 720 | 16 | 20 | 200 | 9 | 672 |
| φ900 | 1200 | 820 | 16 | 20 | 200 | 10 | 750 |
| φ1000 | 1200 | 920 | 16 | 20 | 200 | 11 | 847 |
| φ1800 | 1000 | 1720 | 20 | 20 | 200 | 19 | 1841 |
| φ2000 | 800 | 1920 | 20 | 20 | 200 | 21 | 1852 |
| φ2200 | 800 | 2120 | 20 | 20 | 200 | 23 | 2329 |
| φ2500 | 800 | 2420 | 20 | 20 | 200 | 27 | 2705 |
| φ2800 | 800 | 2720 | 20 | 20 | 200 | 30 | 3200 |
| φ3000 | 800 | 2920 | 20 | 20 | 200 | 32 | 3800 |
| Remark : All measurements are in millimeters, weight in kilograms. | |||||||
Customizable Items:
1.Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.
2.Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
3.Key Component Reinforce Custom : strengthen the key component to extend life cycle;
4.Kelly Box Custom: custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
5.Teeth No. Custom : encrypt the drilling teeth based on demand etc;
Product advantage:
1-We purchase top quality raw materials from leading raw-steel factory.
2-Our drilling tools can be customized depending on kinds of rigs and site conditions.
3-We require high quality of welding, therefore we employ at least 8 years experienced welders.
4-Advanced welding and design ensure the products longer working life, which helps the client to reduce construction budget.
