| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 500-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | plastic cases |
| Delivery Time: | 7 days after payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Unit/Units per Month |
| Name: | Drill Casing | Drilling Diameter: | 500-3000mm Or As Required |
|---|---|---|---|
| Color: | Black Or Per Your Request | OEM: | Available |
| Standard: | ISO | Function: | To Support The Bore Hole Temporarily |
| High Light: | customized drilling rig parts,bauer drilling rig parts,customized bauer double wall casing |
||

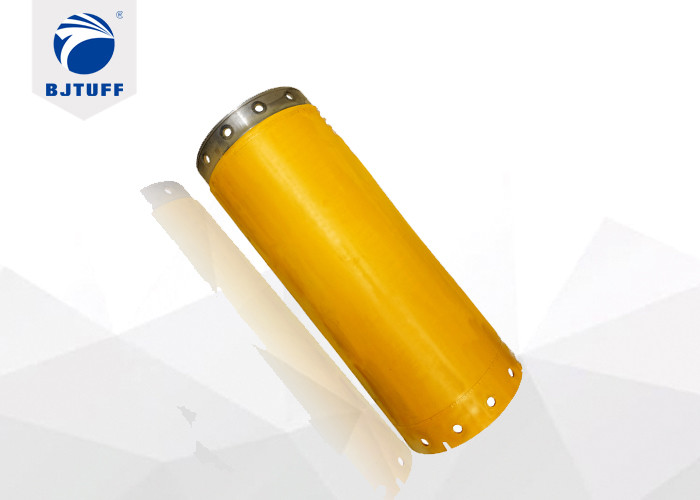

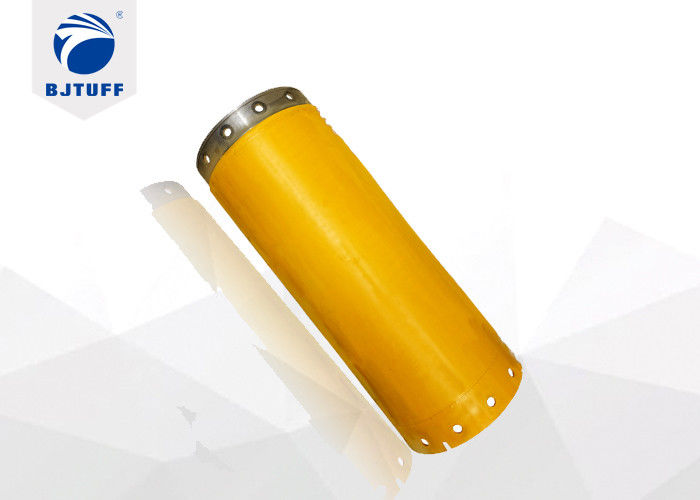

Customized Bauer Drilling Casing With Double Wall
Application:
1. Casing is used to minimize loosening of the soil structure around the pile during the drilling process.The use of casing is compulsory ,if even with a supporting suspension,the ground to be drilled is unstable ,and collaps of the bore hole wall must be expected.
2. Casing tubes have the function of cutting the soil structure with a casing shoe,to support the bore hole temporarily,and by preceding the excavation,to forestall loosening of the ground structure.
Feature
1. The technical parameters and processes of the products are in line with the Bauer standard;
2. Deformation and accuracy is strictly controlled through heat treatment,each casing is interchangeable;
3. Keys make for simple and fast centric aligment of the two sections ,and conical casing screws guarantee a positive ,tight fitting connection -without the screws,the joint is not capable of the transferring the high torques.
4. Besides Bauer,casing is also suitable for Soilmec , Casagrande and other brand;
Model List:
| Casing Dia. | Inner Shell THK. | Outer Shell THK. | Bolts No. | Weight(3 meter) |
| 680-600 | 8 | 12 | 8 | 1090 |
| 880-800 | 8 | 12 | 10 | 1335 |
| 1080-1000 | 10 | 16 | 10 | 2180 |
| 1280-1200 | 10 | 16 | 12 | 2480 |
| 1600-1500 | 12 | 20 | 16 | 3910 |
| 1800-1700 | 12 | 20 | 16 | 4435 |
| 2000-1880 | 16 | 25 | 18 | 5900 |
| 2500-2380 | 16 | 25 | 18 | 7310 |
| Remark : All measurements are in millimeters, weight in kilograms. | ||||
Product advantage:
1- We purchase top quality raw materials from leading raw-steel factory.
2- Our drilling tools can be customized depending on kinds of rigs and site conditions.
3- We require high quality of welding, therefore we employ at least 8 years experienced welders.
4- Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users.
FAQ:
Q1. How do you control the quality of your products?
First,we use good steel GB-Q345B.Our welding stick is flux-cored wire that applied to ship engineering.
Second, We strictly control the process,so If the quality of the product itself has the problem of open welding, we will give compensation;
Third, Customers could contact our sales managers on line/by email/by phone if there are any question during installation or construction, solutions will be given within 12 hours.
