Focus On Heart, Lasting On Action
| Place of Origin: | China |
|---|---|
| Brand Name: | TUFF |
| Certification: | ISO9001 |
| Model Number: | 600-1200mm or as required |
| Minimum Order Quantity: | 1Piece |
| Price: | $950.00 - $2,500.00 / Unit |
| Packaging Details: | Drilling bucket packaged by plastic cases inside,wood case outside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Unit/Units per Month |
| Material: | 16mn-Q355B | Kelly Box: | Sany--150, Bauer--200, Bauer--250 |
|---|---|---|---|
| Teeth Type: | Rock Drilling Bits | Type: | Open Type Body Drilling Bucket |
| High Light: | 16mn Open Type Drilling Bucket,900mm Open Type Drilling Bucket,Bauer Soilmec Mait Drilling Bucket |
||

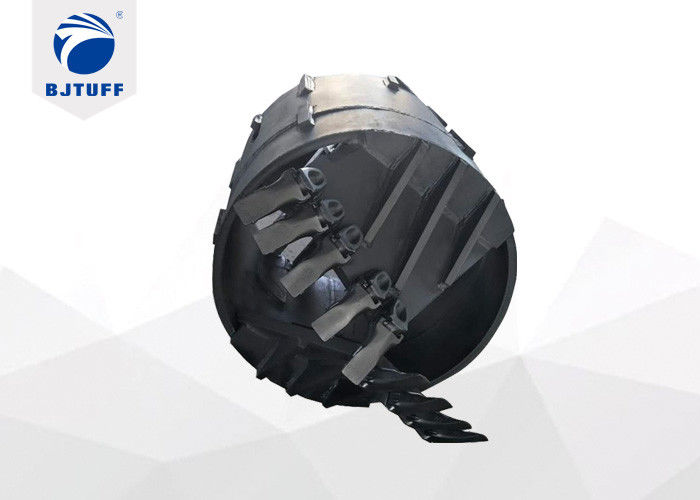

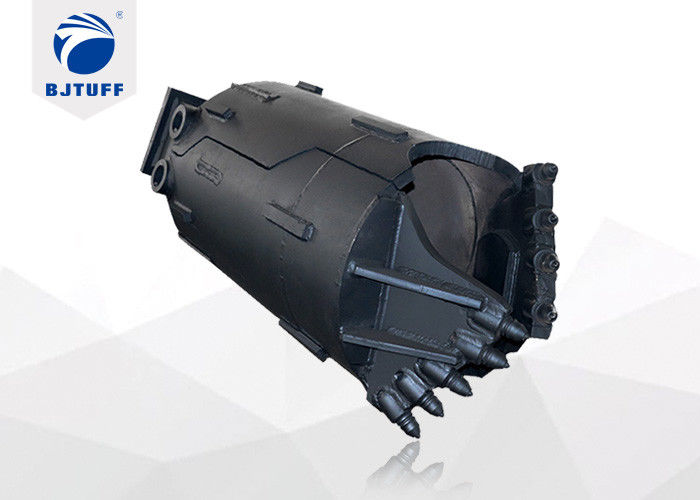

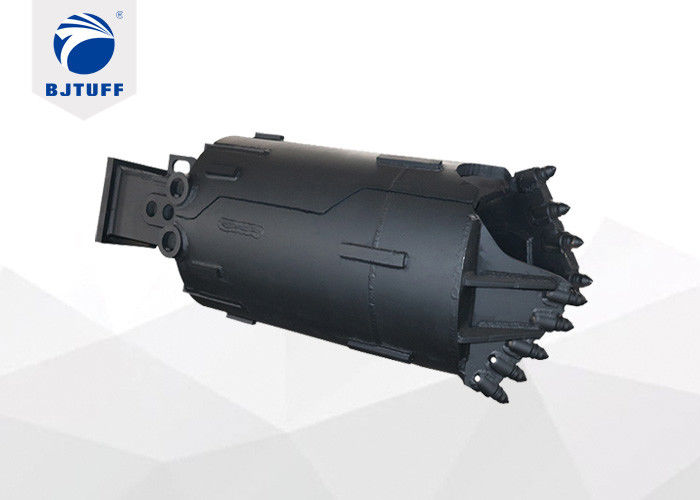

Bauer/Soilmec/Mait rotary rig parts drilling tools drilling bucket with open type body
Feature:
Large inlet of soil ,open shell design, easy to dump spoil so increases the drilling efficiency；
Super strength structure for shell,guide plate etc, increase the life cycle of bucket;
Guide strips arranged on the surface of bucket can avoid drilling tool sucked by the pressure；
Applicable layers: clay , silt , highly weathered rock；
Model List
|
Cutting Dia.
|
Shell HIT.
|
Shell OD.
|
Shell THK.
|
Stiffening Ring THK.
|
StiffeningRing HIT.
|
Teeth
|
Weight No.
|
|
φ600
|
1000
|
510
|
30
|
40
|
300
|
7
|
840
|
|
φ800
|
1200
|
710
|
30
|
40
|
300
|
9
|
1280
|
|
φ900
|
1200
|
810
|
30
|
40
|
300
|
10
|
1500
|
|
φ1000
|
1200
|
910
|
30
|
40
|
300
|
11
|
1730
|
|
φ1200
|
1200
|
1110
|
30
|
40
|
300
|
13
|
2140
|
Remark : The length is in milimeters, weight in kilograms.
Customizable Items:
Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.
Teeth Custom : equiped different teeth, like bullet teeth, flat teeth according to different working condition;
Kelly Box Custom : custom kelly box size based on the kelly bar, like 130*130, 150*150,200*200 etc;
