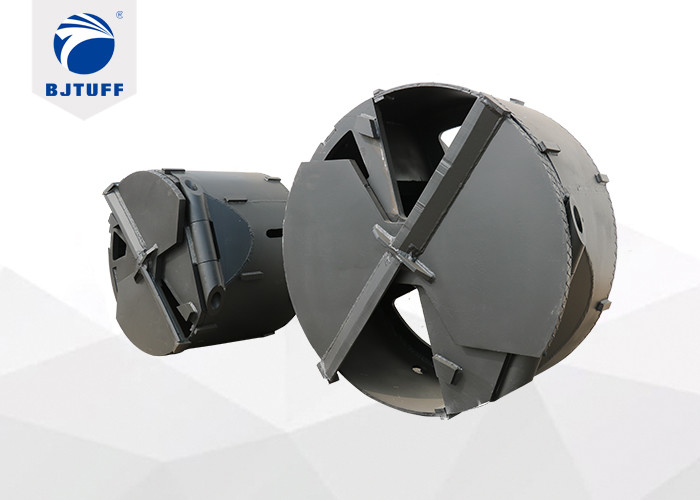

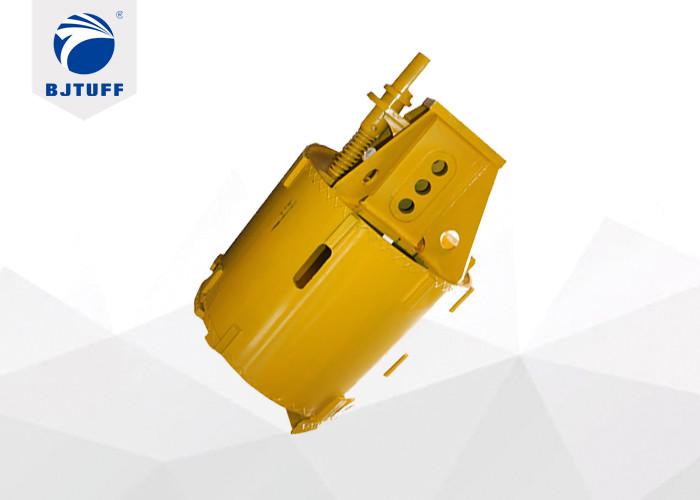

BJTUFF 600mm Silt Drilling Cleaning Bucket For Bore Pile Machinery

Basic Information

Get Best Price Contact Now

Kelly Box:	130130, 150150,200*200 Etc	Application:	Rotary Drilling Rig
Process:	Coated Sand Casting	Condition:	New
Material:	GB-Q355B	Bottom:	Double Bottom
High Light:	600mm Silt Drilling Cleaning Bucket , BJTUFF Silt Drilling Cleaning Bucket , Bore Pile Machinery Drilling Bucket

Equipment Drilling Rig Double Bottom Silt Drilling Cleaning Bucket For Bore Pile Machinery

Feature

1. Choose straight guide plate or no guide plate according to different working conditions;

2. Choose conical or straight bucket according to different working conditions；

3. Applicable scope: cleaning spoil at pile bottom, soft layer；

Customizable Items

1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ750,φ1250 etc.

2. Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.

3. Bottom Custom : single or double bottom design as demand;

4. Kelly Box Custom : custom Kelly box size based on the Kelly bar, like 130*130, 150*150,250*250 etc;

5. Bottom Open Mechanic : half-automatic or manful mechanic bottom open system.

Cleaning Dia.	Shell HIT.	Shell OD.	Shell THK.	Fixed Bottom THK.	Rotate Bottom THK.	Teeth No.	Weight
φ600	800	520	16	40	40	/	495
φ800	800	720	16	40	40	/	693
φ1000	800	920	16	40	50	/	935
φ1200	800	1120	16	40	50	/	1240
φ1500	600	1420	16	40	50	/	1510
φ1600	600	1520	16	40	50	/	1700
φ1800	600	1720	16	50	50	/	2350
φ2000	600	1920	20	50	50	/	3150
φ2200	600	2120	20	50	50	/	3570
φ2500	600	2420	20	50	50	/	4680
φ3000	600	2920	20	50	50	/	6125
Remark : All measurements are in milimeters, weight in kilograms.
