Focus On Heart, Lasting On Action
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Model Number: | 600mm-3000mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases . |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Barrel Error Less Than: | 3-5mm | Bottom Type: | Double Bottom And Double Cut |
|---|---|---|---|
| Kelly Box: | 130*130, 150*150,200*200 Etc | Process: | Coated Sand Casting |
| Product Name: | Drilling Bucxlet | Color: | Black Or As Required |
| High Light: | Double Cut Cleaning Drilling Bucket,Double Bottom Cleaning Drilling Bucket,Spoil Cleaning Drilling Bucket |
||

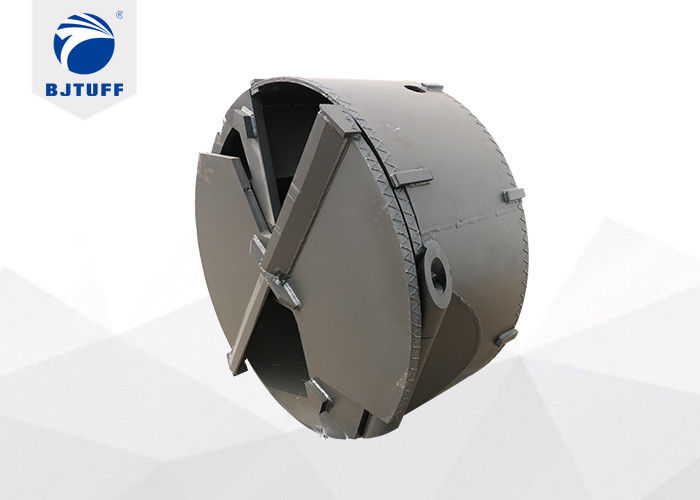

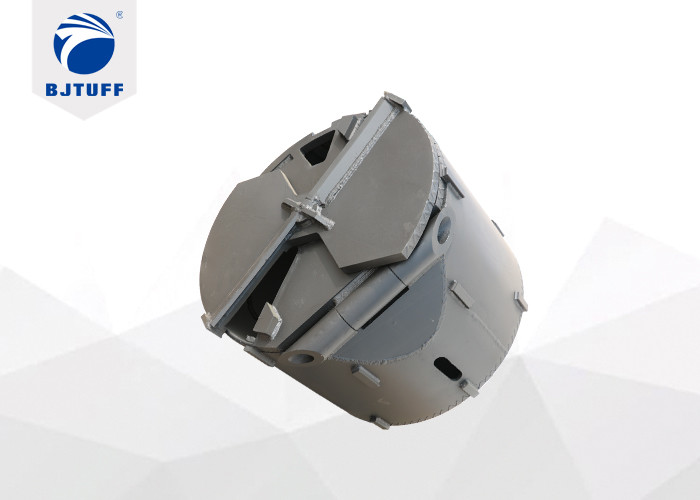

Double Cut Double Bottom Cleaning Drilling Bucket For Cleaning Spoil
Feature
1 Cylindrical barrel or Conical barrel(optional).
2 Throughout the ventilation hole.
3 Hard facing strips for wear protection.
4 Kelly box 130mm,150mm,200mm (optional).
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ550,φ1350 etc.
2. Bottom Custom : single bottom and double bottom design as demand;
3. Kelly Box Custom : custom Kelly box size based on the Kelly bar, like 170*170, 150*150,250*250 etc;
4. Bottom Open Mechanic : half-automatic or manful mechanic bottom open system.
|
Cleaning Dia. |
Shell HIT. | Shell OD. | Shell THK. |
Fixed Bottom THK. |
Rotate Bottom THK. |
Teeth No. | Weight |
| φ600 | 800 | 520 | 16 | 40 | 40 | / | 495 |
| φ800 | 800 | 720 | 16 | 40 | 40 | / | 693 |
| φ900 | 800 | 820 | 16 | 40 | 40 | / | 724 |
| φ1000 | 800 | 920 | 16 | 40 | 50 | / | 935 |
| φ1200 | 800 | 1120 | 16 | 40 | 50 | / | 1240 |
| φ1500 | 600 | 1420 | 16 | 40 | 50 | / | 1510 |
| φ1800 | 600 | 1720 | 16 | 50 | 50 | / | 2350 |
| φ2000 | 600 | 1920 | 20 | 50 | 50 | / | 3150 |
| φ2200 | 600 | 2120 | 20 | 50 | 50 | / | 3570 |
| φ2500 | 600 | 2420 | 20 | 50 | 50 | / | 4680 |
| φ2800 | 600 | 2720 | 20 | 50 | 50 | / | 5330 |
| Remark : All measurements are in milimeters, weight in kilograms. | |||||||
