| Place of Origin: | Hebei, China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 400-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Unit/Units per Month |
| Name: | Cleaning Bucket | Drilling Diameter: | 300-3000mm Or As Required |
|---|---|---|---|
| Color: | Black Or Per Your Request | OEM: | Available |
| Standard: | ISO | Usage: | Drilling Rig Machinery |
| Type: | Drill Bucket | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Mainten |
| High Light: | Double Cut Soil Cleanup Bucket,2500mm Soil Cleanup Bucket,High Wear Resistance Straight Bucket |
||

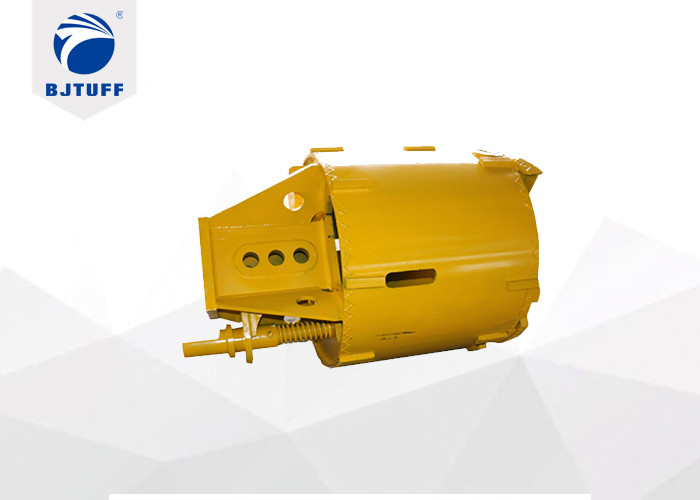

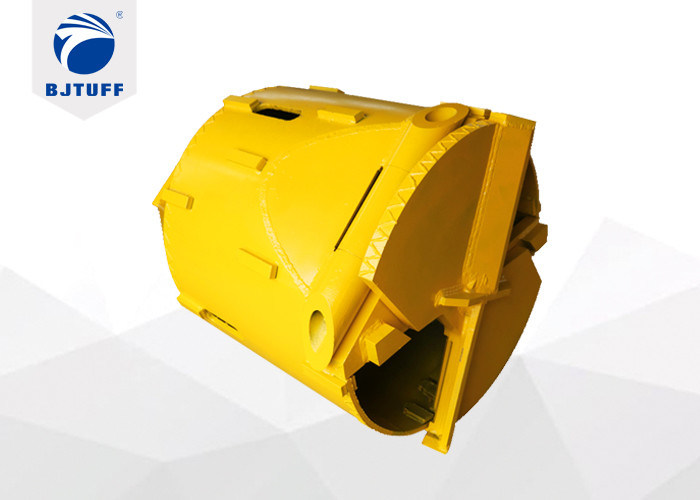

Customized Bore Piling Double Cut Straight Soil Cleanup Bucket
Application:
Cleaning the bottom of borehole.
Feature
1. Choose conical or straight bucket according to different working conditions；
2. Choose straight guide plate or no guide plate according to different working conditions;
3. Applicable scope: cleaning spoil at pile bottom, soft layer；
Model List:
|
Cleaning Dia. |
Shell HIT. | Shell OD. | Shell THK. |
Fixed Bottom THK. |
Rotate Bottom THK. |
Teeth No. | Weight |
| φ600 | 800 | 500 | 16 | 40 | 40 | / | 500 |
| φ800 | 800 | 700 | 16 | 40 | 40 | / | 780 |
| φ900 | 800 | 800 | 16 | 40 | 40 | / | 860 |
| φ1000 | 800 | 900 | 16 | 40 | 50 | / | 980 |
| φ1200 | 800 | 1100 | 16 | 40 | 50 | / | 1270 |
| φ1500 | 600 | 1400 | 16 | 40 | 50 | / | 1570 |
| φ1600 | 600 | 1500 | 16 | 40 | 50 | / | 1900 |
| φ1800 | 600 | 1700 | 16 | 50 | 50 | / | 2480 |
| φ2000 | 600 | 1900 | 20 | 50 | 50 | / | 3000 |
| φ2200 | 600 | 2100 | 20 | 50 | 50 | / | 3570 |
| φ2500 | 600 | 2400 | 20 | 50 | 50 | / | 4680 |
| φ2800 | 600 | 2700 | 20 | 50 | 50 | / | 5330 |
| φ3000 | 600 | 2900 | 20 | 50 | 50 | / | 6125 |
| Remark : All measurements are in milimeters, weight in kilograms. | |||||||
Customizable Items:
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.
2. Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
3. Bottom Custom : single bottom and double bottom design as demand;
4. Kelly Box Custom : custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
5. Bottom Open Mechanic : half-automatic or manful mechanic bottom open system.
Product advantage:
1. High-quality raw materials and high steel strength.
2. Simple operation.
3. High wear resistance.
4. High drilling efficiency.
5. High hardness.
6. Good roundness of the cylinder.
7- Can be customized depending on kinds of rigs and site conditions.
Company advantage:
1- We purchase top quality raw materials from leading raw-steel factory.
2- Our drilling tools can be customized depending on kinds of rigs and site conditions.
3- We require high quality of welding, therefore we employ at least 8 years experienced welders.
4- Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users.
FAQ:
Q1. What does your company produce?
The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.
Q2. How do you control the quality of your products?
First,we use good steel GB-Q345B.Our welding stick is flux-cored wire that applied to ship engineering.
Second, We strictly control the process,so If the quality of the product itself has the problem of open welding, we will give compensation;
Third, Customers could contact our sales managers on line/by email/by phone if there are any question during installation or construction, solutions will be given within 12 hours.
