| Place of Origin: | Hebei, China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 400-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Unit/Units per Month |
| Name: | Cleaning Bucket | Drilling Diameter: | 300-3000mm Or As Required |
|---|---|---|---|
| Color: | Black Or Per Your Request | OEM: | Available |
| Usage: | Boring Machine | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Mainten |
| Application:: | Foundation Engineering | Type: | Drilling Bucket |
| High Light: | Single Cutter Cleaning Drilling Bucket,2800mm Cleaning Drilling Bucket,BJTUFF Straight Clay Bucket |
||

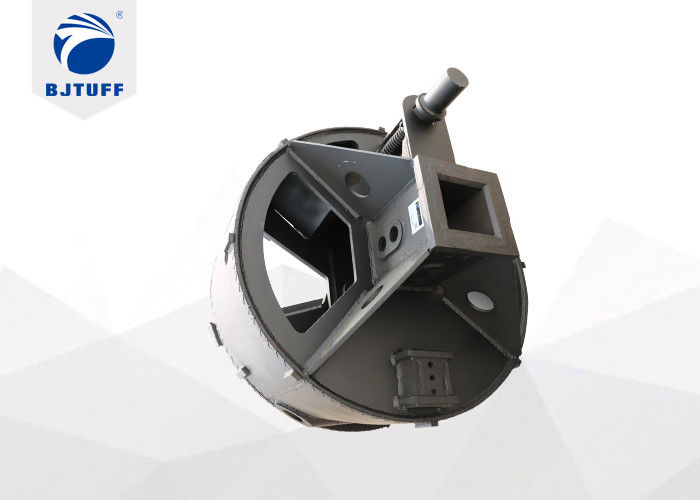

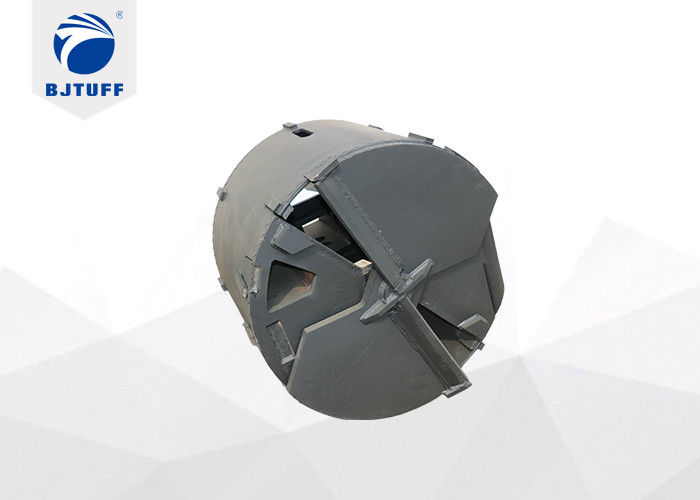

Customized Bore Piling Single Cutter Straight Clay Cleaning Bucket
Application:
cleaning the dense sand, gravel and rocks in the bottom of borehole.
Feature
1. Cylindrical barrel or Conical barrel(optional).
2 Throughout the ventilation hole.
3 Hard facing strips for wear protection.
4. Choose straight guide plate or no guide plate according to different working conditions;
Model List:
|
Cleaning Dia. |
Shell HIT. | Shell OD. | Shell THK. |
Fixed Bottom THK. |
Rotate Bottom THK. |
Teeth No. | Weight |
| φ600 | 800 | 500 | 16 | 40 | 40 | / | 500 |
| φ800 | 800 | 700 | 16 | 40 | 40 | / | 780 |
| φ900 | 800 | 800 | 16 | 40 | 40 | / | 860 |
| φ1000 | 800 | 900 | 16 | 40 | 50 | / | 980 |
| φ1200 | 800 | 1100 | 16 | 40 | 50 | / | 1270 |
| φ1500 | 600 | 1400 | 16 | 40 | 50 | / | 1570 |
| φ1800 | 600 | 1700 | 16 | 50 | 50 | / | 2480 |
| φ2000 | 600 | 1900 | 20 | 50 | 50 | / | 3000 |
| φ2500 | 600 | 2400 | 20 | 50 | 50 | / | 4680 |
| φ2800 | 600 | 2700 | 20 | 50 | 50 | / | 5330 |
| φ3000 | 600 | 2900 | 20 | 50 | 50 | / | 6125 |
| Remark : All measurements are in milimeters, weight in kilograms. | |||||||
Customizable Items:
1. Cutting DIA. Custom : design various cutting diameter based on demand.
2. Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
3. Bottom Custom : single bottom and double bottom design as demand;
4. Cutter Custom:single cutter and double design as demand.
4. Kelly Box Custom : like 130*130, 150*150,200*200 etc;
5. Bottom Open Mechanic : half-automatic or manful mechanic bottom open system.
Product advantage:
1. High-quality raw materials and high steel strength.
2. Simple operation.
3. High wear resistance.
4. High drilling efficiency.
5. High hardness.
6. Good roundness of the cylinder.
7- Can be customized depending on kinds of rigs and site conditions.
Company advantage:
1- We purchase top quality raw materials from leading raw-steel factory.
2- Our drilling tools can be customized depending on kinds of rigs and site conditions.
3- We require high quality of welding, therefore we employ at least 8 years experienced welders.
4- Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users.
FAQ:
Q1. What does your company produce?
The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.
Q2: What's the material of wear resistance strip on your drilling tools?
For hard facing strips, we adopt Hardox 400 or same class wear-resistance steel. such as NM500.
Q2. How do you control the quality of your products?
First,we use good steel GB-Q345B.Our welding stick is flux-cored wire that applied to ship engineering.
Second, We strictly control the process,so If the quality of the product itself has the problem of open welding, we will give compensation;
Third, Customers could contact our sales managers on line/by email/by phone if there are any question during installation or construction, solutions will be given within 12 hours.
