| Place of Origin: | Hebei, China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 400-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Unit/Units per Month |
| Name: | Open Type Drilling Bucket | Drilling Diameter: | 400-3000mm Or As Required |
|---|---|---|---|
| Color: | Black Or Per Your Request | OEM: | Available |
| Usage: | Drilling Rig Machinery | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Mainten |
| Material: | Q345/460+NM400 | Application: | Clay And Highly Weathered Rock |
| High Light: | Centrifugal Rock Drilling Bucket,600mm Rock Drilling Bucket,Drilling Bucket With Open Body |
||

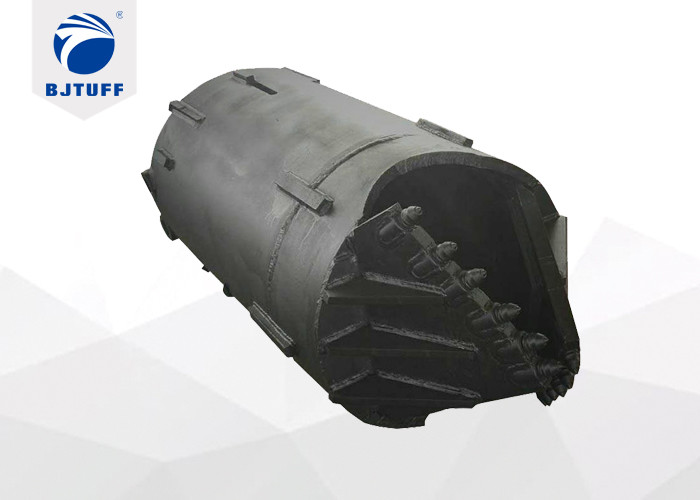

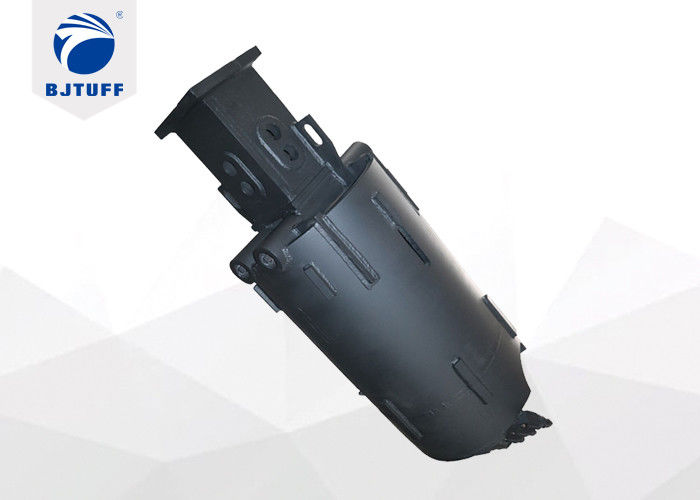

Rotary Drilling Tools Centrifugal Rock Drilling Bucket With Open Body
Application:
Drilling in clay, silt and loose to medium dense sand, gravel and medium hard rocks, etc.
Feature
1. Large inlet of soil ,open shell design, easy to dump spoil so increases the drilling efficiency；
2. Super strength structure for shell,guide plate etc, increase the life cycle of bucket; Guide strips
3. arranged on the surface of bucket can avoid drilling tool sucked by the pressure；
4. Applicable layers: clay , silt , highly weathered rock；
Model List:
| Cutting Dia. | Shell HIT. | Shell OD. | Shell THK. |
Stiffening Ring THK. |
Stiffening Ring HIT. |
Teeth No. | Weight |
| φ600 | 1000 | 520 | 30 | 40 | 300 | 7 | 805 |
| φ800 | 1200 | 720 | 30 | 40 | 300 | 9 | 1238 |
| φ900 | 1200 | 820 | 30 | 40 | 300 | 10 | 1500 |
| φ1000 | 1200 | 920 | 30 | 40 | 300 | 11 | 1700 |
| φ1200 | 1200 | 1120 | 30 | 40 | 300 | 13 | 2140 |
| Remark : All measurements are in millimeters, weight in kilograms. | |||||||
Customizable Items:
Customized according to the customer's construction and the actual situation of the stratum.
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.
2. Teeth Custom : equiped different teeth, like bullet teeth, flat teeth according to different working condition;
3. Kelly Box Custom : custom kelly box size based on the kelly bar, like 130*130, 150*150,200*200 etc;
Package:
Packaging details for BJTUFF open type bucket
1. 100% inspection before shipment.
2. Wrapped with plastic film.
3. Fixed with iron support.
4. Packed with plastic cases and wooden cases for drilling bits, clay teeth or other small accessories.
5. As clients' requirements.
Company advantage:
1- We purchase top quality raw materials from leading raw-steel factory.
2- Our drilling tools can be customized depending on kinds of rigs and site conditions.
3- We require high quality of welding, therefore we employ at least 8 years experienced welders.
4- Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users.
FAQ:
Q1.What does your company produce?
The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.
Q2.How do you control the quality of your products?
First,we use good steel GB-Q345B.Our welding stick is flux-cored wire that applied to ship engineering.
Second, We strictly control the process,so If the quality of the product itself has the problem of open welding, we will give compensation;
Third, Customers could contact our sales managers on line/by email/by phone if there are any question during installation or construction, solutions will be given within 12 hours.
