Place of Origin: | Hebei, China |
---|---|
Brand Name: | BJTUFF |
Certification: | ISO9001 |
Model Number: | 400-3000mm or as required |
Minimum Order Quantity: | 1 Piece |
Price: | Negotiated |
Packaging Details: | Wood case outside, plastic cases inside. |
Delivery Time: | 3-5 days after payment |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | 200 Unit/Units per Month |
Drilling Diameter: | 400-3000mm Or As Required | Color: | Black Or Per Your Request |
---|---|---|---|
OEM: | Available | Usage: | Rotary Drilling Rig |
Material: | Q345/460+NM400 | Product Name: | Drilling Bucket |
Teeth Type: | Rock Drilling Bits | Application: | Clay And Highly Weathered Rock |
High Light: | Open Split Type Drilling Bucket,ISO9001 Open type Drilling Bucket,ISO 3000mm Drilling bucket |

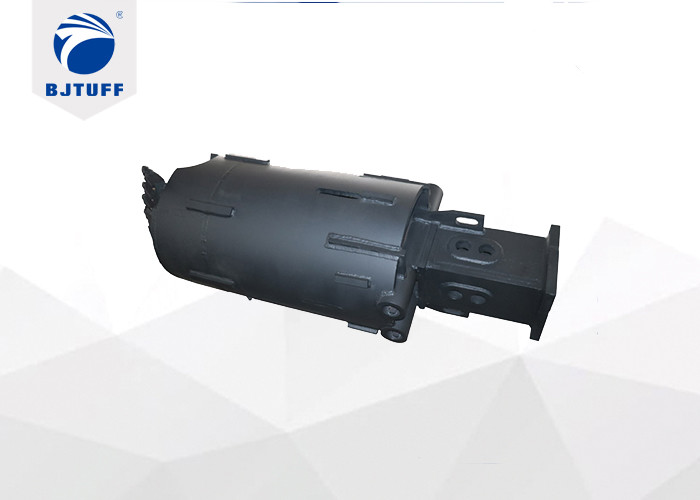

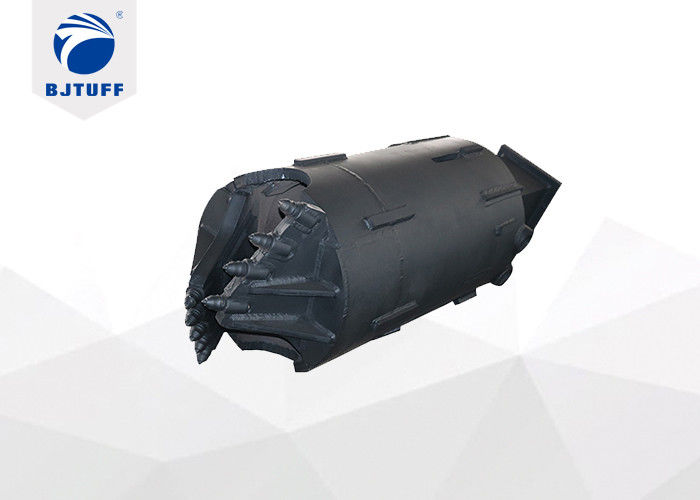

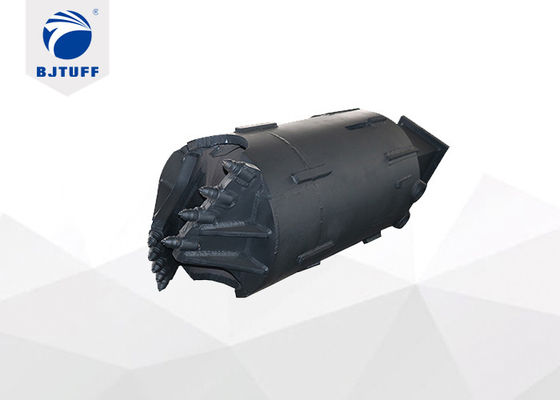

Building Construction Equipment Open Split Type Drilling Bucket
Customizable Items:
Customized according to the customer's construction and the actual situation of the stratum.
1. Cutting DIA. Custom : design various cutting diameter based on demand.
2. Teeth Custom : equiped different teeth, like bullet teeth, flat teeth according to different working condition;
3. Kelly Box Custom : custom kelly box size based on the kelly bar, like 130*130, 150*150,200*200 etc;
Application:
Drilling in clay, silt and loose to medium dense sand, gravel and medium hard rocks,It's best for ciscous clay particularly less than 1200mm DIA.
Feature
Centrifugal Open Type Rock Bucket adopt the high-carbon steel and special drilling bits angle to keep the drilling strength and efficiency.
1. Large inlet of soil ,open shell design, easy to dump spoil so increases the drilling efficiency;
2. Super strength structure for shell,guide plate etc, increase the life cycle of bucket; Guide strips
3. arranged on the surface of bucket can avoid drilling tool sucked by the pressure;
Model List:
Cutting Dia. | Shell HIT. | Shell OD. | Shell THK. |
Stiffening Ring THK. |
Stiffening Ring HIT. |
Weight |
φ600 | 1200 | 510 | 25 | 30 | 300 | 810 |
φ800 | 1200 | 710 | 30 | 40 | 300 | 1281 |
φ900 | 1200 | 810 | 30 | 40 | 300 | 1550 |
φ1000 | 1200 | 910 | 30 | 40 | 300 | 1877 |
φ1100 | 1200 | 1010 | 30 | 40 | 300 | 1950 |
φ1200 | 1200 | 1110 | 30 | 40 | 300 | 2180 |
Remark : All measurements are in millimeters, weight in kilograms. |
Package:
Packaging details for BJTUFF open type bucket
1. 100% inspection before shipment.
2. Wrapped with plastic film.
3. Fixed with iron support.
4. Packed with plastic cases and wooden cases for drilling bits, clay teeth or other small accessories.
5. As clients' requirements.
Procedure
1.OEM or customized products
2.Track the production
3.Arrange for inspection if needed
4.Take photos before delivery
5.Arrange for customs clearance
6.Track the shipment
7.Send related files to customers
8.Track quality problems if any
9.Collect suggestions from customers
Company advantage:
1-We purchase top quality raw materials from leading raw-steel factory.
2-Our drilling tools can be customized depending on kinds of rigs and site conditions.
3-We require high quality of welding, therefore we employ at least 8 years experienced welders.
4-Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users.
FAQ:
Q1.What does your company produce?
The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.
Q2.How do you control the quality of your products?
First,we use good steel GB-Q345B.Our welding stick is flux-cored wire that applied to ship engineering.
Second, We strictly control the process,so If the quality of the product itself has the problem of open welding, we will give compensation;
Third, Customers could contact our sales managers on line/by email/by phone if there are any question during installation or construction, solutions will be given within 12 hours.
