| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO |
| Model Number: | 4.5mm,5mm,6mm,7mm,8mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | ST52 | Application: | Rotary Drilling Rig |
|---|---|---|---|
| Process: | Forging And Welding | Product Name: | Tremie Pipe |
| Color: | Black Or As Required | Length: | 3m Or As Requied |
| High Light: | ST52 Tremie Pipe,Tremie Pipe For Bored Pile,219mm Drilling Rig Tremie Pipe |
||

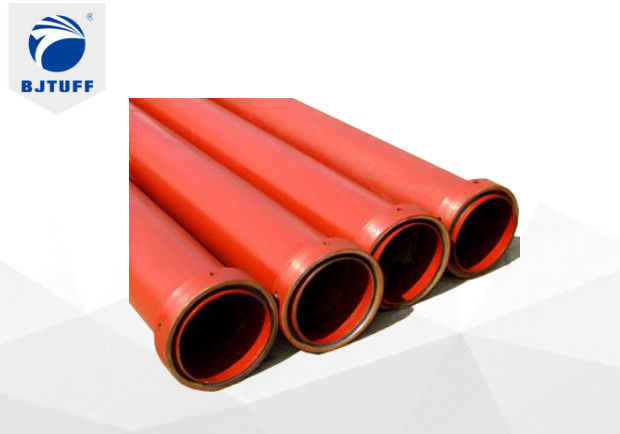

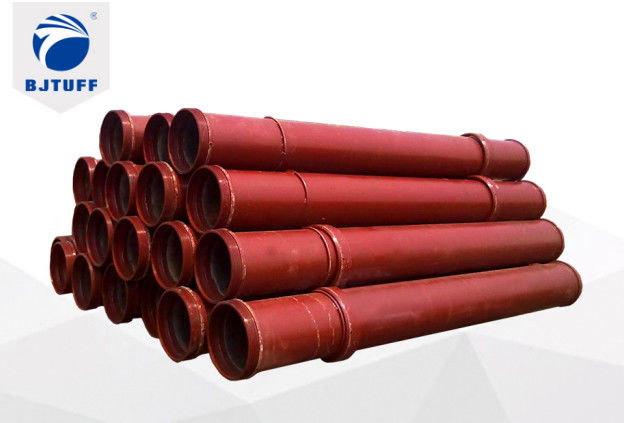

Wholesale Customized Good Quality Delivery Concrete Tremie Pump Pipe And Spare Parts
Feature:
BJTUFF tremie pipes are made of quality drawn steel plates in order to guarantee high resistance elements.
Tremie pipes are equipped with male / female joints with thread.
Standard tremie pipe contains bottom tube, short tube, standard tube. bottom tube is 4m, standard3m, short for 0.5-2m.
Tremie pipes are normally used to pour concrete into a drilled pile, after the steel cage reinforcement is placed in operation, to avoid concrete pile breakage or gaps. During the operations they are lowered inside and through the steel cage reinforcement to protect concrete from soil contamination water filtering and to avoid any possible concrete quality corruption. Tremie pipes are made of quality drawn steel plates in order to guarantee high resistance elements.
| Tremie Pipe ΦC(mm) | Female Joint ΦA(mm) | Male Joint ΦB(mm) | Recommended Pile Diameter(mm) | Recommended Volume(m³) | Tremie Pipe Thickness(mm) | Seal type |
| 219 | 274 | 248 | Φ500-Φ700 | 1 | 3/3.5/4 | O seal ring |
| 260 | 325 | 294 | Φ700-Φ1000 | 1.5 | 3/3.5/4 | O seal ring |
| 300 | 374 | 338 | Φ1000-Φ1500 | 2.0 | 3/3.5/4 | O seal ring |
|
Remark: |
||||||
Product advantage:
1. With the help of experienced team of engineers and well-supervised production team,BJTUFF has a greater ability to produce top-quality foundation drilling tools.
2. High-quality welding and finishing throughout the drilling tool is very important to increase the life of the Drilling tool. BJTUFF drilling tools are manufactured under very experienced supervision,and quality inspection and control before delivery ensures that the right product is sent out to the customers.
3. Wear resisting strips on the drilling tool help to minimize the wearing out of body of the drilling tools.
4. Each different type of drilling tool is designed to meet maximum possible variations in the soil for specific job-site conditions.
5. The angle of attack of drilling bits are variable according to the type of soil/rock to generate maximum efficiency during drilling.
