Focus On Heart, Lasting On Action
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO |
| Model Number: | 500-1200mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | GB-Q355B | Application: | Rotary Drilling Rig |
|---|---|---|---|
| Process: | Forging And Welding | Product Name: | Open-type Bucket |
| Color: | Black Or As Required | Certification: | ISO |
| High Light: | 700mm Open Type Drilling Bucket,1059 kg Open Type Drilling Bucket,Highly Weathered Rock Drilling Bucket |
||

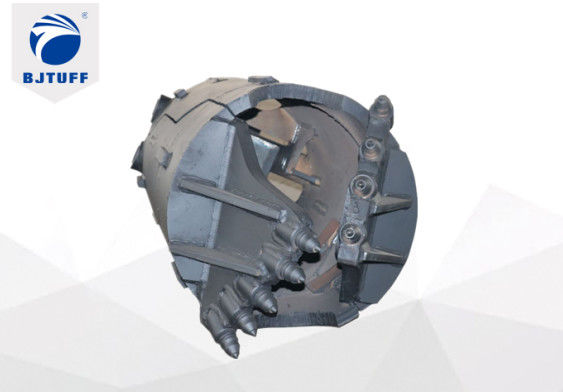

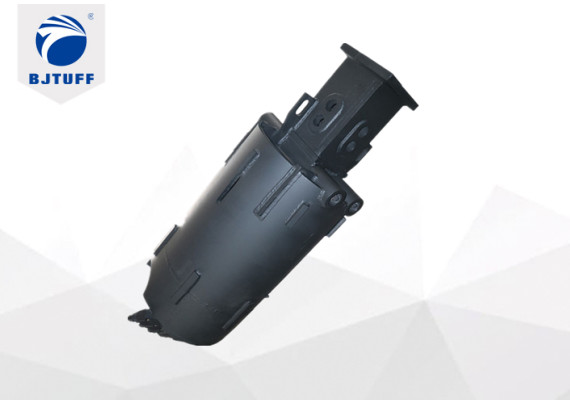

Construction Machinery Parts Open Type Bucket Piling Rig For Deep Foundation
Product advantage:
1. Higher abrasion performance.
2. High resistance, reduce barrel abrasion.
3. Maximum efficiency during drilling.
4. High precision.
Feature
1. Large inlet of soil ,open shell design, easy to dump spoil so increases the drilling efficiency；
2. Super strength structure for shell,guide plate etc, increase the life cycle of bucket;
3. Guide strips arranged on the surface of bucket can avoid drilling tool sucked by the pressure；
4. Applicable layers: clay, silt, highly weathered rock;
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ850,φ1150 etc.
2. Kelly Box Custom: custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
3. Flat Teeth Custom: customize type of flat teeth;
| Cutting Dia. | Shell HIT. | Shell THK. | Stiffening Ring THK. | Teeth No. | Weight | |
| Bucket with soil teeth | Φ500 | 1000 | 20 | 30 | 4 | 550 |
| Φ600 | 1200 | 25 | 30 | 4 | 804 | |
| Φ700 | 1200 | 30 | 40 | 6 | 1059 | |
| Φ800 | 1200 | 30 | 40 | 7 | 1256 | |
| Φ900 | 1200 | 30 | 40 | 7 | 1450 | |
| Φ1000 | 1200 | 30 | 40 | 7 | 1887 | |
| Φ1200 | 1200 | 30 | 40 | 9 | 2050 | |
| Bucket with bullet teeth | Φ500 | 1000 | 20 | 30 | 6 | 558 |
| Φ600 | 1200 | 25 | 30 | 7 | 803 | |
| Φ700 | 1200 | 30 | 40 | 8 | 1071 | |
| Φ800 | 1200 | 30 | 40 | 9 | 1281 | |
| Φ900 | 1200 | 30 | 40 | 10 | 1548 | |
| Φ1000 | 1200 | 30 | 40 | 12 | 1877 | |
| Φ1200 | 1200 | 30 | 40 | 13 | 2175 | |
| Remark : All measurements are in milimeters, weight in kilograms. | ||||||
FAQ
Q: What's the nature of your company?
We are Factory. We are experienced drilling product factory in China, all products posted are produced by ourselves, so we can offer you competitive price while ensuring product quality.
Q: What does your company make?
The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.the lists are as below:
1. single/double bottom sand drilling bucket with bullet teeth or flat teeth
2. bullet teeth or roller bit core barrel
3. belling bucket/clam drilling bucket/clean out bucket
4. conical or cylindrical auger/CFA auger
5. round shank chisel/flat teeth/roller bit
6. interlocking or frictional kelly bar
7. single/double wall casing pipe
8. tremie pipe
9. steel wire rope
10. pile breaker
Q: How do you ship your products?
Our goods can be transported by air and sea or per your request.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
