Focus On Heart, Lasting On Action
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO |
| Model Number: | 500-1200mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | GB-Q355B | Application: | Rotary Drilling Rig |
|---|---|---|---|
| Process: | Forging And Welding | Product Name: | Open-type Bucket |
| Color: | Black Or As Required | Certification: | ISO |
| High Light: | 500mm Open Type Drilling Bucket,Q355B Open Type Drilling Bucket,Drilling Bucket For Deep Foundation |
||

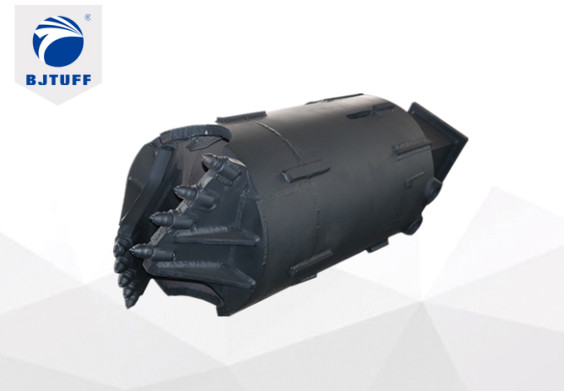

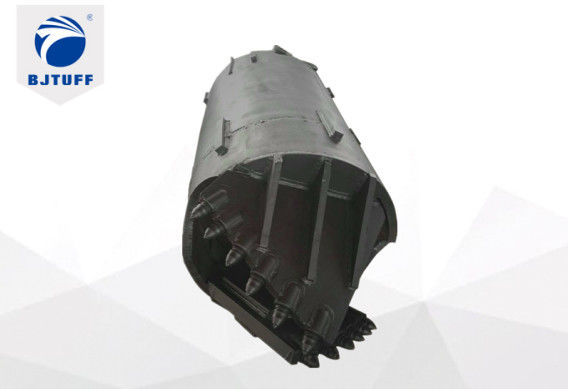

Rotary Rig Open Type Bucket piling tools For Deep Foundation
Our main products include drilling buckets, augers, core barrels, kelly bars, drilling teeth and holders, double wall casing and casing attachment. These products are acknowledged for their durability, robust construction, corrosion resistance and easy operations. Suitable for Bauer, Soilmec, Mait,Liebherr, Casagrande, IMT, Sany, XCMG, Zoomlion, Sunward ETC.Rotary Rig Foundation Spare Parts.
Feature
1. Large inlet of soil ,open shell design, easy to dump spoil so increases the drilling efficiency；
2. Adopt the high-carbon steel and special drilling bits angle to keep the drilling strength and efficiency;
3. Guide strips arranged on the surface of bucket can avoid drilling tool sucked by the pressure；
4. Applicable layers: Drilling in clay, silt and loose to medium dense sand, gravel and medium hard rocks, etc;
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ850,φ1150 etc.
2. Kelly Box Custom: custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
3. Flat Teeth Custom: customize type of flat teeth;
| Cutting Dia. | Shell HIT. | Shell THK. | Stiffening Ring THK. | Teeth No. | Weight | |
| Bucket with soil teeth | Φ500 | 1000 | 20 | 30 | 4 | 550 |
| Φ600 | 1200 | 25 | 30 | 4 | 804 | |
| Φ700 | 1200 | 30 | 40 | 6 | 1059 | |
| Φ800 | 1200 | 30 | 40 | 7 | 1256 | |
| Φ900 | 1200 | 30 | 40 | 7 | 1450 | |
| Φ1000 | 1200 | 30 | 40 | 7 | 1887 | |
| Φ1200 | 1200 | 30 | 40 | 9 | 2050 | |
| Bucket with bullet teeth | Φ500 | 1000 | 20 | 30 | 6 | 558 |
| Φ600 | 1200 | 25 | 30 | 7 | 803 | |
| Φ700 | 1200 | 30 | 40 | 8 | 1071 | |
| Φ800 | 1200 | 30 | 40 | 9 | 1281 | |
| Φ900 | 1200 | 30 | 40 | 10 | 1548 | |
| Φ1000 | 1200 | 30 | 40 | 12 | 1877 | |
| Φ1200 | 1200 | 30 | 40 | 13 | 2175 | |
| Remark : All measurements are in milimeters, weight in kilograms. | ||||||
FAQ
Q: What's the nature of your company?
We are Manufacturer. We have factories all over China, all products posted are produced by ourselves, so we can offer you competitive price while ensuring product quality. And sell to Domestic Market(50.00%),North America(10.00%),Southeast Asia(8.00%),Northern Europe(6.00%),South America(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Europe(4.00%),Mid East(2.00%),Africa(1.00%),Oceania(1.00%),Eastern Asia(1.00%),Western Europe(1.00%),Southern Europe(1.00%).
Q:How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: How do you ship your products?
Our goods can be transported by air and sea or per your request.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
