| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO |
| Model Number: | DF26-T10 |
| Minimum Order Quantity: | 20 Pieces |
| Price: | Negotiated |
| Packaging Details: | Plastic boxes |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 10000 Pieces/30 days |
| Material: | Carbide ,42CrMo | Application: | Boring Piling Machine |
|---|---|---|---|
| Process: | Forging And Welding | Product Name: | DF26-T10 Hard Rock Drill Teeth |
| Weight: | 1450g | Color: | Black Or As Your Required |
| High Light: | 26mm round shank chisel,body alloy round shank chisel,round 26mm shank chisel |
||

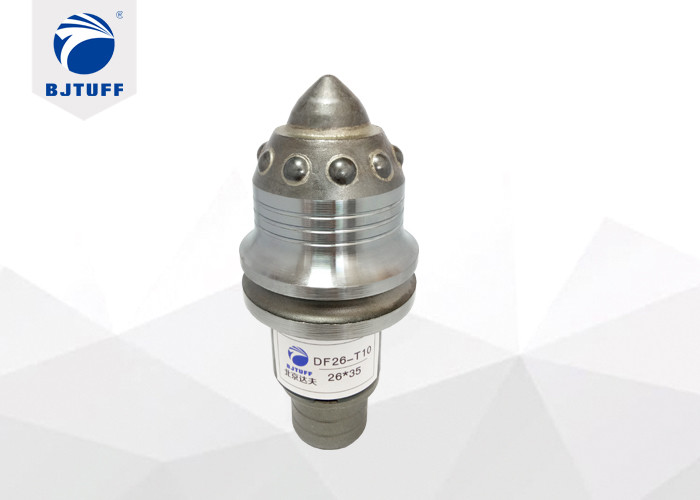

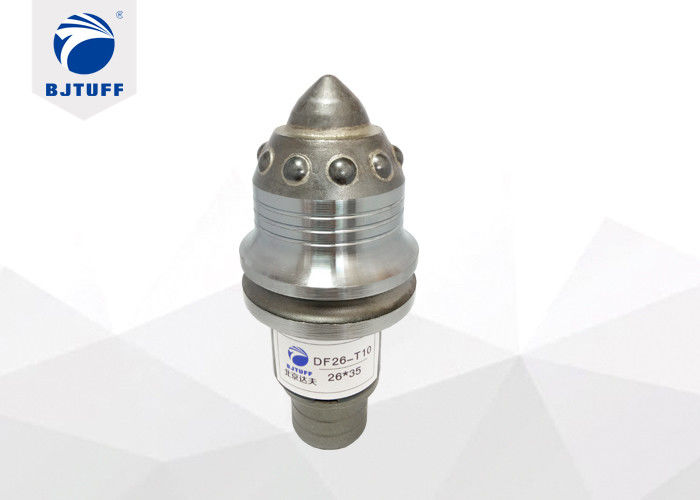

26mm Carbide Size Hard Rock Type Round Shank Chisel With Body Alloy
Advantage
1. The carbide tip use the low-cobalt material, with bigger carbide tip, with stronger abrasion resistance.
2. Advanced processing, to guarantee the carbide tips high quality.
3. The carbide tip has well-distributed micro-particles, with super impact strength,
4. The carbide tips of new design (unique mesh style outlook) have tower shape or step shape, which makes the bullet bits scatter out the rock pieces more smoothly, the efficiency can reduce 20%; comparing the traditional bullet bit, the drilling efficiency of the new one can increase 33%. It can better service for drilling weak weathering rock 60-70Mpa, hard rock 80-90Mpa, except 100Mpa.
Application
Suitable for medium and strong weathering soft geology.
Material details as below
High Management Alloy Steel Body, made of 42CrMo,
heat treatment with 40-44HRC hardness, forged and anti-rust treatment,
has high toughness and wearable character.
Hardness: 40-44HRC
Items
| Type | Specification | Size(mm) |
| 3050-22 | 3050 | 22*27 |
| K59 | 3060 | 22*27 |
| 3050-N9 | 3050 | 20*25 |
| K59-N10 | 3060 | 22*27 |
| K60-N11 | 3060 | 25*30 |
| K60-T10 | 3060 | 25*30 |
| DF22-T10 | 3055 | 22*27 |
| DF24-T10 | 3055 | 24*33 |
| DF26-T10 | 3060 | 26*34 |
| DF28-T10 | 3060 | 28*36 |
| DF30-T10 | 3060 | 30*36 |
Holder Size
70 Holder, 80 holder, 70 alloy round holder, 80 alloy round holder, square tooth holder.
Reason for choose us
1. Customized configuration products for targeted territories.
2. Sponsorship on factory tours.
3. Constant innovation on the new products.
4. One-Stop foundation equipment solution.
FAQ
Q: What is the advantages of our products?
We are Factory. We use super quality raw material, which makes the drilling tools more durable and our drilling tools with competitive
price. No matter you are dealers or end user, you will get the biggest profit.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
